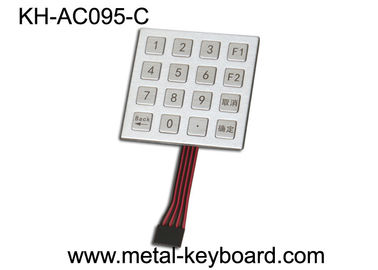

Access Control System Stainless Steel Keypad 4x4 Matrix , vandal proof keypad

Access Control System Stainless Steel Keypad 4x4 Matrix , vandal proof keypad

Access Control System Stainless Steel Keypad 4x4 Matrix , vandal proof keypad

Product Details:

Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-AC095-C

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 6 pcs/EPE/inner box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: T/T, Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Keys: 16 (4x4 Design)
Protection Level: IP65 Interface: Matrix Output
Operating Temperature: -20º C To + 60º C Product Name: Door Access Entry Keypad



IP65 Rated Stainless Steel Keypad 4x4 Matrix for Access Control System



Product Features:


• 16 Keys Access Control keypad in 4x4 Matrix
• All international language lay-out are available.
• Metal dome connect PCB key switch technology
• Laser engraved characters for excellent durable.
• Matrix output; Also PS/2 or USB connector are available.
• Front panel mounting Solution.
• Waterproof ,dust proof, vandal proof.





Applications:


• A rugged vandal resistant high reliability keyboard which is ideal for use in public access entry system , kiosk self - service terminal , industrial control and instrumentation type applications.





Technical Specifications



Material Environmental Characteristics

ELECTRICAL DATA



• SUS304 stainless steel panel mount access keypad, anti-vandal, IP65 water-proof & long life

• Operating temperature: -20°C to + 60°C

• Storage temperature: - 40°C to + 80°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003



Operation system Reliability Mechanical Data
• It is compatible to All windows, Linux, Unix, Mac OSX

• MTBF >5,0000H

• MTTR <30min





• Key switch lifespan:more than 10 Mio actuations

• Lifespan > 5 years
