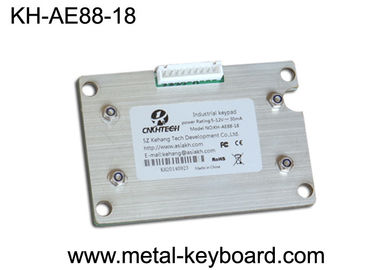

Customized Keyboard Metal Numeric Keypad with Rugged Stainless Steel Material

Customized Keyboard Metal Numeric Keypad with Rugged Stainless Steel Material

    • Customized Keyboard Metal Numeric Keypad with Rugged Stainless Steel Material
    • Customized Keyboard Metal Numeric Keypad with Rugged Stainless Steel Material
  • Customized Keyboard Metal Numeric Keypad with Rugged Stainless Steel Material

    Product Details:

    Place of Origin: China
    Brand Name: CNKHTECH
    Certification: CE/ROHS/FCC
    Model Number: KH-AE88-18

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: 6pcs/EPE/inner box, 30boxes/ctn
    Delivery Time: 1-2 weeks
    Payment Terms: T/T, Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Keys: 18 Material: Brushed Stainless Steel
    Protection Level: IP65 Interface: Matrix Output
    Product Name: Numeric Keypad Dimensions: 75 X 60 MM (Front Panel)
    Mounting Method: Rear Panel Mounting Solution Operating Temperature: -20º C To + 60º C



    Customized Numeric Keypad with Rugged Stainless Steel Material



    Product Features:


    • 18 Keys (Customized layout)

    • Laser engraved characters for excellent durable.

    • Matrix output with 8 Pin power terminals

    • Also PS2 or USB connector are available

    • Anti-vandal, IP65 water-proof & long lifespan




    Product Description



    • This Numeric Keypad made of Rugged Stainless Steel Material, specially designed keypad meet the highest demands with regard to design, functionality, longevity and high protection level.



    •  Ideal for applications in the public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.





    Technical Specifications



    Material Environmental Characteristics

    ELECTRICAL DATA



    • Stainless steel panel and keys guard willful destruction, vandal-proof, against corrosion,

    • Operating temperature: -20°C to + 60°C

    • Storage temperature: - 40°C to + 80°C

    • Operating RH: 20-95%

    • Atmospheric pressure: 60-106Kpa.

    • Supply Voltage:5.0V DC±5%

    • Current Rating: appr. 30mA

    • EMC Standard: It is compliance with the council EMC directive 2004/108/EC

    • EN55022: 2006+A2:2010

    • EN55024: 1998+A1:2001+A2:2003



    Operation system Reliability Mechanical Data
    • It is compatible to All windows, Linux, Unix, Mac OSX

    • MTBF >5,0000H

    • MTTR <30min





    • Key switch lifespan:more than 10 Mio actuations

    • Lifespan > 5 years





    Our Product Features



    1. Material: Stainless steel material design, IP65 Water-proof,dust-proof,Vandal-proof performance,and long lifespan.



    2. Keys: Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers. Long life to prevent lettering rub-off. and firm tactile key feel and unique double over-travel protection.



    3. Key-tops : Internet friendly key layout, Etched graphics with permanent ink, durable and long lasting. Sunk laser-etched in legends and characters via using high quality ink for easy readability,



    4. Layout: Friendly layout and any language is available and without any additional charge.



    5. Interface: PS/2, USB connection plug-and-play. No driver needed, plug and play.



    6. Easily mounting into enclosure or panel.
