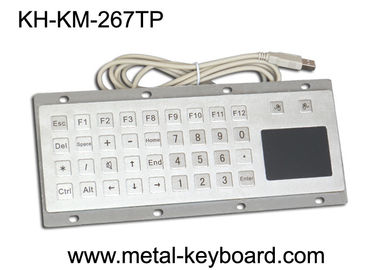

Custom Mine Vandal proof Metal Panel Mount Keyboard with Touchpad Mouse

Custom Mine Vandal proof Metal Panel Mount Keyboard with Touchpad Mouse

Custom Mine Vandal proof Metal Panel Mount Keyboard with Touchpad Mouse

Product Details:

Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-KM-267TP

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pc/EPE/white box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: T/T, Paypal, Western Union, MoneyGram, L/C
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Keys: 36
Protection Level: IP65 Mouse Type: Touchpad
Mounting Method: Panel Mounting Solution Interface: PS/2 Or USB
Operating Temperature: -20º C To + 60º C Product Name: Industrial Panel Mount Keyboard



Vandal proof Metal Panel Mount Custom Mine Keyboard with Touchpad





Product Description



• Rugged stainless steel panel mount keypad,16 flat Keys compact format with integrated touchpad, metal dome connect gold-plated PCB key switch technology. IP65 Water-proof, dust-proof, Vandal-proof Performance.





Product Features:



• 16keys Dumeric keypad, by 4 x 4 Layout.

• Built in High precision technology of touchpad.

• Laser engraved characters for excellent durable.

• Rear aluminum panel w/hole mounting solution

• PS/2 or USB connector are available

• All international language lay-out are optional.





Material



• Front panel & Keys: super quality SUS304 Brushed stainless steel

• Back Plate:3.0mm thickness brushed & silver oxidized aluminum

• Touchpad: 1.3 mm thickness Synaptics Touch Pad





Technical Specifications




Material Environmental Characteristics

ELECTRICAL DATA



• Stainless steel material design, IP65 Water-proof,dust-proof,Vandal-proof performance,and long lifespan.

• Operating temperature: -20°C to + 60°C

• Storage temperature: - 40°C to + 80°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003



Operation system Reliability Mechanical Data
• It is compatible to All windows, Linux, Unix, Mac OSX

• MTBF >5,0000H

• MTTR <30min





• Key switch lifespan:more than 10 Mio actuations

• Trackball lifespan:> 10 Mio revolutions

• Lifespan > 5 years





MAIN APPLICATION:



• This Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.
