SZ Kehang Technology Development Co., Ltd.
Professional Manufacturer and Solution Provider of Industrial Keyboard , Industrial Keypad and Industrial trackball/touchpad
|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||1pc/EPE/white box, 30boxes/ctn|
|Delivery Time:||1-2 weeks|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Material:||304 Stainless Steel||Protection Level::||IP65; NEMA4x|
|Key Number:||3||Interface:||USB, PS/2|

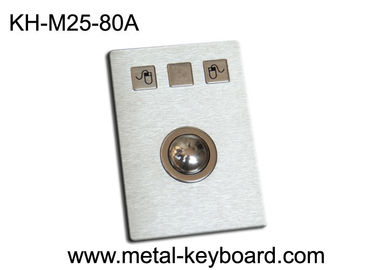

USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device
Dimension: 80 x110 mm (Front panel)
IP65 Rated vandal proof stainless steel laser trackball, 3 mouse buttons designed for right, left scrolling keys, with front panel mounting solution.
• All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
• Laser Encoders provide high resolution more than 1200DPI, fast and reliable positioning data.
• 25mm diameter Stainless steel ball for smooth, quick and durable operation and precise cursor positioning.
• Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
• no metal bearings inside, operation is very smooth, and easy without any noise.
• can be mounted horizontally, and vertically.
• PS/2 or USB connector is available.
• Customized layout is available.
• Using the existing mouse driver and mouse software Interfaces for most workstations and computers. It’s meet NEMA 4, 4X and IP 65 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.
|Material||Electrical Data||Environmental Characteristics|
• Front panel & Keys: SUS304 Stainless steel
• Back panel: Aluminum alloy
• Trackball: Stainless steel(Dia: 25mm)
• Voltage: 5.0VDC ±5%
• Electric current: 10mA
• EMC compliant
• Laser trackball resolution: 1200dpi
• Operating temperature: -20°C to + 60°C
• Storage temperature: - 40°C to + 80°C
• Operating RH: 20-95%
• Atmospheric pressure: 60-106Kpa.
• PS/2, USB available,No driver needed, plug and play.
• MTBF >5,0000H
• MTTR <30min
• Key switch lifespan:more than 10 Mio actuations
• Trackball lifespan:> 10 Mio revolutions
|• (W x H): 80mm x 110mm(Front panel)||• 1pc/EPE/white box, 30boxes/ctn||• It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX|
