Metallic Sealed Water - proof Industrial Trackball mouse with USB Port

Metallic Sealed Water - proof Industrial Trackball mouse with USB Port

Metallic Sealed Water - proof Industrial Trackball mouse with USB Port

Product Details:

Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-M25-90

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pc/EPE/white box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: 304 Stainless Steel Protection Level:: IP65; NEMA4x
Key Number: 2 Interface: USB, PS/2
Mouse: Trackball G.W.:: 0.6 KG

Metallic Sealed Water - proof Industrial Trackball mouse with USB Port





Product Description:

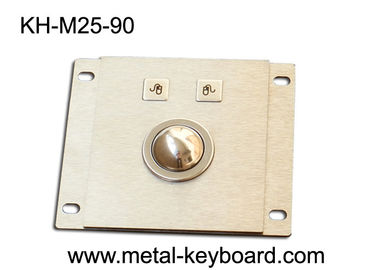

IP65 Rated Sealed Water-proof Industrial Trackball mouse, stainless steel laser trackball, 2 mouse buttons designed for right, left keys, with front panel mounting solution.





Product Features:



• All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.

• Laser Encoders provide high resolution more than 1200DPI, fast and reliable positioning data.

• 25mm diameter Stainless steel ball for smooth, quick and durable operation and precise cursor positioning.

• Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.

• no metal bearings inside, operation is very smooth, and easy without any noise.

• can be mounted horizontally, and vertically.

• PS/2 or USB connector is available.

• Customized layout is available.





MAIN APPLICATION:



• Sealed Water-proof Industrial Trackball mouse, use the High quality stainless steel material, and special water proof design, IP 65 protect class, it has good performance of water proof, dust proof and vandalism proof.





Technical Specifications
Material Electrical Data Environmental Characteristics
• All parts that are exposed to outside are built from 304 stainless steel that is dust-proof, water-proof,vandal-proof, anti-rusty,anti-corrosive

• Voltage: 5.0VDC ±5%

• Electric current: 10mA

• EMC compliant

• Laser trackball resolution: 1200dpi

• Operating temperature: -20°C to + 60°C

• Storage temperature: - 40°C to + 80°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

Interface Reliability Mechanical Data

• PS/2, USB available,No driver needed, plug and play.



• MTBF >5,0000H

• MTTR <30min



• Key switch lifespan:more than 10 Mio actuations

• Trackball lifespan:> 10 Mio revolutions

Dimension Packing Operation system
• (W x H): 80mm x 90mm(Front panel) • 1pc/EPE/white box, 30boxes/ctn • It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX




Metallic Sealed Water - proof Industrial Trackball mouse with USB Port
