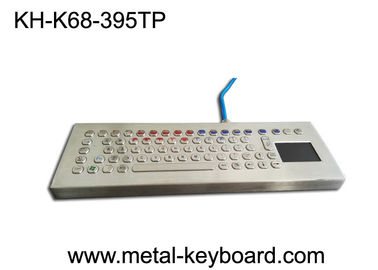

Vandal resistant 70 PC Ruggedized Keyboard Panel Mount layout with touchpad

Vandal resistant 70 PC Ruggedized Keyboard Panel Mount layout with touchpad

    • Vandal resistant 70 PC Ruggedized Keyboard Panel Mount layout with touchpad
    • Vandal resistant 70 PC Ruggedized Keyboard Panel Mount layout with touchpad
  • Vandal resistant 70 PC Ruggedized Keyboard Panel Mount layout with touchpad

    Product Details:

    Place of Origin: China
    Brand Name: CNKHTECH
    Certification: CE/ROHS/FCC
    Model Number: KH-K68-395TP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: 1pcs/EPE/inner box, 10boxes/ctn
    Delivery Time: 1-2 weeks
    Payment Terms: L/C, T/T, Western Union,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel L X W (MM): 395 X135mm(Front Panel)
    No. Of Keys: (67+ 3) Keys Mouse Detail: Touchpad Mouse
    Layout: Internet Friendly Key Layout Protection Level: IP65; NEMA4x

    Vandal resistant Keyboard, Stainless Steel Metal 70 PC-keyboard layout with touchpad




    PRODUCT FEATURES -

    >  Super quality SUS304 Brushed stainless steel material of the stand alone keyboard

    >  Designed to operate in harsh environments

    >  67 PC-keyboard layout with touchpad 395x135 mm front panel and additonal 3 mouse buttons

    > Desktop style,no mounting needed,enjoy the convenience of mobility

    >  Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback

    >  Be strictly according to IP65 regulation for water-proof,dust-proof,vandal-proof performance

    >  USB,PS/2,matrix output are optional

    >  Laser engraved characters for excellent durable

    >  Customized layout is available


    APPLICATION -


    The Vandal resistant Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas


    TECHNICAL DATA -

    > Mechnical Data







    Dimension:

    (W x H): 395 x135 mm (Front panel)



    Key & Front panel

    SUS304 Brushed stainless steel material



    Touchpad thickness

    1.3 mm PCB thickness inclusive of mylar layer



    Switch Life

    >1 million of per key



    Touchpad lifespan

    > 10 Mio times



    Mounting Rack

    Top stainless steel plate with mounting screw bolts



    Back Metal Cover

    Rear side integrated electronics protected by a metal cover
    Operation System WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,MacOSX,iOS, Android



    > Electrical Data



    Supply Voltage


        5.0V DC±5%



    Current Rating


        Appr. 30mA



    EMC Standard


        Council EMC directive 2004/108/EC



    EN55022


        2006+A2:2010



    EN55024


        1998+A1:2001+A2:2003



    Lifespan


        > 5 years



    > Environmental Adaptability



    Operating temperature


        -20°C to +60°C



    Storage temperature


        -30°C to +70°C



    Operating RH


        20-95%



    Atmospheric pressure


        60-106Kpa.


    > Reliability



    CompliantStandard


        RoHS , CE and FCC



    Protection Level


        IP65(front panel)



    Vandal resistant


        IK10



    Key Lifespan


        >1 million actuation



    MTBF


        >50000H


    MTTR


        <30min





    Vandal resistant 70 PC Ruggedized Keyboard Panel Mount layout with touchpad
