Anti Vandal Rear Panel Mount Keyboard Industrial , Kiosk Keyboard USB interface in 45 Keys

Anti Vandal Rear Panel Mount Keyboard Industrial , Kiosk Keyboard USB interface in 45 Keys

  • Anti Vandal Rear Panel Mount Keyboard Industrial , Kiosk Keyboard USB interface in 45 Keys
  • Anti Vandal Rear Panel Mount Keyboard Industrial , Kiosk Keyboard USB interface in 45 Keys
Anti Vandal Rear Panel Mount Keyboard Industrial , Kiosk Keyboard USB interface in 45 Keys
Product Details:
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-AE150-45
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pc/EPE/white box, 10boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: T/T, Paypal, L/C
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Keyboard Catagory: Industrial Keyboad Measurement(Front Panel): 150 X 85mm
Keyboard Material: Stainless Steel Color Of Keys: Black And Stainless Steel Color
Buttons: 45 Connector: USB Or PS/2
High Light:

custom mechanical keyboard

,

industrial keyboard



Anti Vandal Rear Panel Mount Keyboard Industrial , Kiosk Keyboard USB interface in 45 Keys

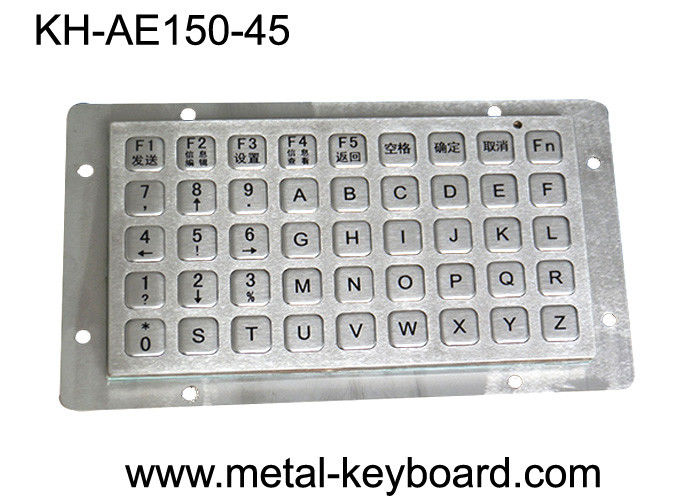

ITEM No.: KH-AE150-45

Dimension(Front Panel):  150 X 85mm (Front Panel)



APPLICATIONS -

Using in Transportation area, such as parking ternimal system, Marine industry, industrial automation device, military devices, coal mine area, metallurgy, electricity and other industries.



MAIN FEATURES -

> 45 Keys of the keyboard in stainless steel

> Etched graphics with permanent ink on the keys

> Followed IP65 Waterproof  dust proof and anti-vandal

> USB connection of the keyboard and other interfaces are optional

> Rear Panel Mounted for Kiosk

> Customer's layout is acceptable.



TECHNICAL DATA SHEET AND SPECIFICATIONS -

Material Front panel & Keys: Brushed stainless steel
Back panel: Aluminum alloy
Electrical Data Power supply voltage: :5.0V DC±5%
Current rating: appr. 30mA
Interface: USB or PS2
EMC compliant. compliance with the council EMC directive 2004/108/EC
EN55022: 2006+A2:2010
EN55024: 1998+A1:2001+A2:200
EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
FCC
CE,ROHS
Environmental Characteristics Operating temperature: -30 C to + 65 C
Storage temperature: - 40 C to + 80 C
Operating Relative Humidity: 30% - 95%
Atmospheric pressure: 60-106Kpa.
Mechanical Data Key travel: 2.0mm
Lifetime (cycles): Min 10, 000, 000 actuations
Sealing protection: IP65 from the front
Lifespan: more than 5 years
Operation system Interface: USB, PS/2
OS:

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX



Anti Vandal Rear Panel Mount Keyboard Industrial , Kiosk Keyboard USB interface in 45 Keys 0
