Anti - vanda Keyboard with 45 Keys , Industrial Metal Keyboard

Anti - vanda Keyboard with 45 Keys , Industrial Metal Keyboard

  • Anti - vanda Keyboard with 45 Keys , Industrial Metal Keyboard
  • Anti - vanda Keyboard with 45 Keys , Industrial Metal Keyboard
Anti - vanda Keyboard with 45 Keys , Industrial Metal Keyboard
Product Details:
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-AE150-45
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/EPE/white box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: T/T, Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Keys: 45
Protection Level: IP65; NEMA4x Interface: PS/2 Or USB
Operating Temperature: -20º C To + 60º C Product Name: Kiosk Keyboard
Highlight:

keyboards in metal

,

dust proof keyboard

Anti - vanda Keyboard with 45 Keys , Industrial Metal Keyboard





Product Description

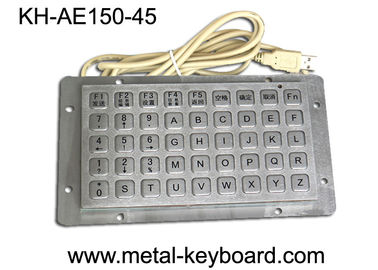

Rugged stainless steel panel mount keyboard with Anti-vandal and Long lifespan,45 Key Layout (26 letters , 10 numeric keys, F1-F5 function keys,space bar,Enter, ESC), any keys can be re-defined per customers' requirements.flat keys (with short stroke 0.45mm),IP65 dust-proof,water-proof,Vandal-proof, rear panel mounting solution.



Product Features:

• 45 keys compact format(customized layout is available)
• Flat key design with Metal dome connect PCB key switch technology
• Laser engraved characters for excellent durable.
• Rear panel w/hole mounting solution
• Interface PS/2, USB available,No driver needed, plug and play.
• All international language lay-out are optional.
• CE,FCC,RoHS Certificate.





Technical Specifications
Material Environmental Characteristics

ELECTRICAL DATA



• All parts that are exposed to outside are built from 304 stainless steel that is dust-proof, water-proof,vandal-proof, anti-rusty,anti-corrosive

• Operating temperature: -20°C to + 60°C

• Storage temperature: - 40°C to + 80°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003



Operation system Reliability Mechanical Data
• It is compatible to All windows, Linux, Unix, Mac OSX

• MTBF >5,0000H

• MTTR <30min





• Key switch lifespan:more than 10 Mio actuations

• Lifespan > 5 years





MAIN APPLICATION:



• The Anti - vanda Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.



Anti - vanda Keyboard with 45 Keys , Industrial Metal Keyboard 0
