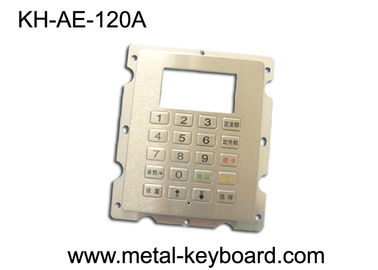

IP65 Stainless Steel 20 Button Gas Station Kiosk Keypad In 4x5 Matrix

IP65 Stainless Steel 20 Button Gas Station Kiosk Keypad In 4x5 Matrix

  • IP65 Stainless Steel 20 Button Gas Station Kiosk Keypad In 4x5 Matrix
IP65 Stainless Steel 20 Button Gas Station Kiosk Keypad In 4x5 Matrix
Product Details:
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-AE-120A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 2 pcs/EPE/inner box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: T/T, Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Keys: 20 (4x5 Design)
Protection Level: IP65 Interface: Matrix Output
Operating Temperature: -20º C To + 60º C Product Name: Gas Station Keypad
Highlight:

vandal proof keyboard

,

metallic keyboard



Stainless Steel Gas Station Keypad with 20 Keys In 4x5 Matrix



Product Features:


• 20 Keys Metal Gas Station Keypad in 4x5 Matrix
• All international language lay-out are available.
• Metal dome connect PCB key switch technology
• Laser engraved characters for excellent durable.
• Matrix output; Also PS/2 or USB connector are available.
• Front panel mounting Solution.
• Waterproof ,dust proof, vandal proof.





Applications:


• This keypad is ideal for applications in the public areas and harshest conditions, such as CNG / LPG Dispenser,Gas Station, LPG filling station, LNG gas dispenser, etc.





Technical Specifications



Material Environmental Characteristics

ELECTRICAL DATA



• All parts that are exposed to outside are built from 304 stainless steel that is dust-proof, water-proof,vandal-proof, anti-rusty,anti-corrosive

• Operating temperature: -20°C to + 60°C

• Storage temperature: - 40°C to + 80°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003



Operation system Reliability Mechanical Data
• It is compatible to All windows, Linux, Unix, Mac OSX

• MTBF >5,0000H

• MTTR <30min





• Key switch lifespan:more than 10 Mio actuations

• Lifespan > 5 years
