SZ Kehang Technology Development Co., Ltd.
Professional Manufacturer and Solution Provider of Industrial Keyboard , Industrial Keypad and Industrial trackball/touchpad
Sales & Support:
Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Mouse Type: | Laser Trackball |
|---|---|---|---|
| Interface: | PS2 Or USB | Dimensions: | 420 X165 MM (Front Panel) |
| Product Name: | Ruggedized Kiosk Keyboard | Mounting Method: | Top Panel Mounting Solutio |
| Protection Level: | IP 65; NEMA4x | Operating Temperature: | -20º C To + 60º C |
| High Light: | ss keyboard,industrial keyboards |
||

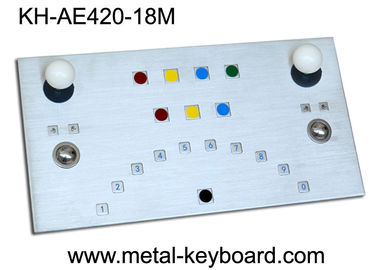

IP65 Metal Ruggedized Industrial Kiosk Keyboard with Tow Trackballs
• 18 Keys Ruggedized Kiosk Keyboard
• Built in tow laser trackballs
• Etched graphics with permanent ink
• Top panel w/bolt mounting solution
• IPS/2 or USB connector are available
• Waterproof ,dust proof, vandal proof, wearproof
• Customized layout is available
MAIN FEATURE:
• The Ruggedized Keyboard are specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, ideal for use in public access entry system , kiosk self - service terminal , industrial control and instrumentation type applications.
| Technical Specifications | ||
|
Material
|
All parts that are exposed to outside are built from 304 stainless steel that is dust-proof, water-proof,vandal-proof, anti-rusty,anti-corrosive | |
|
ELECTRICAL DATA
|
Interface: | USB or PS2 |
| Supply Voltage | 5.0V DC±5% | |
| Current Rating: | appr. 30mA | |
| EMC Standard: | It is compliance with the council EMC directive 2004/108/EC | |
| EN55022: | 2006+A2:2010 | |
| EN55024: | 1998+A1:2001+A2:2003 | |
|
Environmental Characteristics
|
Operating temperature: | -20 C to + 60 C |
| Storage temperature: | - 40 C to + 80 C | |
| Operating RH: | 20-95% | |
| Atmospheric pressure: | 60-106Kpa. | |
| Mechanical Data | Key switch lifespan | more than 10 Mio actuations |
| Trackball lifespan | > 10 Mio revolutions | |
| Lifespan | > 5 years | |
| Reliability | MTBF | >5,0000H |
| MTTR | <30min | |
| Operation system | It is compatible to All windows, Linux, Unix, Mac OSX | |
