| Place of Origin: | China |
| Brand Name: | CNKHTECH |
| Certification: | CE/ROHS/FCC |
| Model Number: | KH-AE668-12H |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 6pcs/EPE/inner box, 30boxes/ctn |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 5000pcs/month |
| Keys: | 12 | Material: | Brushed Stainless Steel |
|---|---|---|---|
| Protection Level: | IP65 | Interface: | Matrix Output |
| Product Name: | Metal Keypad | Dimensions: | 66 X 88 MM (Front Panel) |
| Mounting Method: | Top Panel Mounting Solution | Operating Temperature: | -20º C To + 60º C |
| Highlight: | stainless steel keypad,industrial keypad |
||

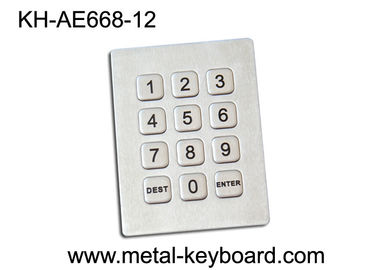

Rugged Stainless Steel Access Kiosk Keypad with 12 Keys In 3x4 Matrix
• 12 Keys Metal Keypad, by 3 x 4 Layout
• Laser engraved characters for excellent durable.
• Matrix output with 7 Pin power terminals
• Also PS2 or USB connector are available
• IP65 water-proof,dust-proof,vandal-proof
• Customized layout is available
Product Description
• This Metal Keypad are specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP 65 compliant, it has good performance of water proof, dust proof and vandalism proof.
Technical Specifications
| Material | Environmental Characteristics |
ELECTRICAL DATA
|
| • Vandal proof stainless steel design, meet the highest demands with regard to design, functionality, longevity and high protection level. |
• Operating temperature: -20°C to + 60°C • Storage temperature: - 40°C to + 80°C • Operating RH: 20-95% • Atmospheric pressure: 60-106Kpa. |
• Supply Voltage:5.0V DC±5% • Current Rating: appr. 30mA • EMC Standard: It is compliance with the council EMC directive 2004/108/EC • EN55022: 2006+A2:2010 • EN55024: 1998+A1:2001+A2:2003
|
| Operation system | Reliability | Mechanical Data |
| • It is compatible to All windows, Linux, Unix, Mac OSX |
• MTBF >5,0000H • MTTR <30min
|
• Key switch lifespan:more than 10 Mio actuations • Lifespan > 5 years |
Main Application:

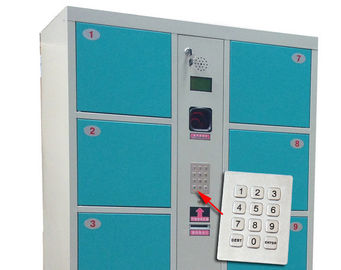

• Ideal for applications in the public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, industrial control and instrumentation type, etc.
