| Material: | Stailess Steel | Dimension: | 116 X97.5mm(L X W) (Front Panel) |
|---|---|---|---|
| No. Of Keys: | 16 | Interface: | USB, PS/2, Matrix Output Or Others |
| Layout: | Customization Available | Net Weight: | 0.45kg |
| High Light: | Digital keypad,number keypads |
||

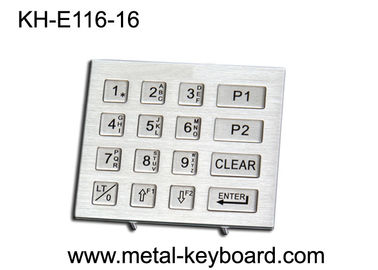

Rugged Vandal resistant 16 Keys Numeric Keypad 4x4 Customized layout
KH-E116
This keypad is specially designed for security/access control system or other applications. It has 16 keys which can be changed the charaters according to customer's design. It is strictly with IP65 for water proof, vandal-resistant and and dust-proof regulation.
Applicaiton:
Mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.
Technical Data:
|
Key Travel:
|
1.5mm
|
|
Switch Life:
|
>1 million of per key
|
|
Operation System:
|
WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,MacOSX,iOS, Android
|
|
Supply Voltage:
|
5.0V DC±5%
|
|
Current Rating:
|
Appr. 30mA
|
|
EMC Standard:
|
Council EMC directive 2004/108/EC
|
|
EN55022:
|
2006+A2:2010
|
|
EN55024:
|
1998+A1:2001+A2:2003
|
|
Lifespan:
|
> 5 years
|
|
Operating temperature:
|
-20°C to +60°C
|
|
Storage temperature:
|
-30°C to +70°C
|
|
Operating RH:
|
20-95%
|
|
Atmospheric pressure:
|
60-106Kpa.
|
|
CompliantStandard:
|
RoHS , CE and FCC
|
|
Protection Level:
|
IP65(front panel)
|
|
Vandal resistant:
|
IK10
|
|
Key Lifespan:
|
>1 million actuation
|
|
MTBF:
|
>50000H
|
|
MTTR:
|
<30min
|
Our Services:
Over the years, we have established a soft design and manufacture system to provide a products and solutions for customers based on their demands and different conditions.
”Good Products, Friendly Service” are our principle. OEM and ODM are available in our company. We do our best to make a suitable solution chain for our customers.
