SZ Kehang Technology Development Co., Ltd.
Professional Manufacturer and Solution Provider of Industrial Keyboard , Industrial Keypad and Industrial trackball/touchpad
Sales & Support:
Product Details:
Payment & Shipping Terms:
|
| Catagory: | Backlit Industrial Keyboad | Product Size: | 381x100x35mm(Front Panel) |
|---|---|---|---|
| Product Material: | Stainless Steel | LED Light Color: | Blue, Red, Green, White |
| Number Of Keys: | 80 KEYS + 3 BUTTONS | Interface: | USB Or PS/2 |
| High Light: | waterproof mechanical keyboard,industrial pc keyboard |
||

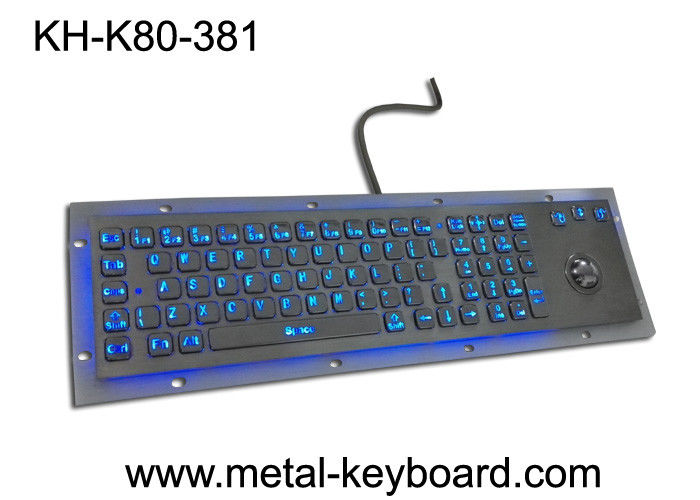

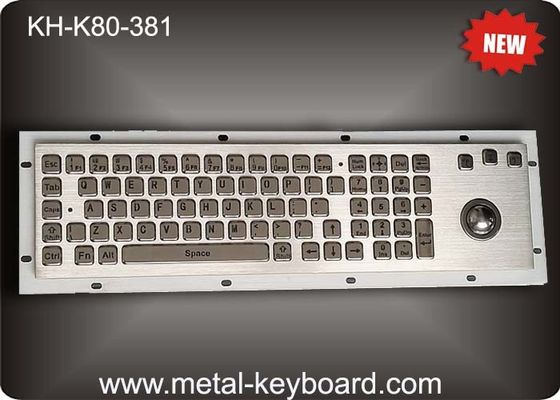

Rugged Vandal resistant Backlit Metal keyboard with track ball , USB interface and 80 keys
ITEM No.: KH-K80-381
Product Dimension(Front Panel): 381x100x35mm
Product Dimension(Monting Panel):405x125x35mm
APPLICATIONS -
Using in Marine industry(such as access control system), industrial automation device, military devices, coal mine area, metallurgy, electricity,transportaion and other special industries.
MAIN DESCRIPTION -
1) PS/2 or USB interface for option
2) 80 LED individually-lit keys PC layout with 3 designed buttons and 25mm laser trackball
3) Panel mount, installing from the rear side
4) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted with integrated optical trackball,
5) The trackball mouse can be mounted in horizontal or vertical and operated smoothly without any noise
6) Customizable layout upon customer’s request, different languages are acceptable
7) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
8) Robust construction, high resistance against vandalism
9) Different LED backlight color can be changed according to customer's needs.
10).“Fn + SPACE” is as backlight effect; different light level(press 1 time is light, press again it would be lighter). A light image laser on the SPACE key as the mark.
TECHNICAL DATA SHEET AND SPECIFICATIONS -
| Material | Front panel & Keys: Brushed stainless steel |
| Back panel: Aluminum alloy | |
| Electrical Data | Power supply voltage: :5.0V DC±5% |
| Current rating: appr. 30mA | |
| Interface: USB or PS2 | |
| EMC compliant. compliance with the council EMC directive 2004/108/EC EN55022: 2006+A2:2010 EN55024: 1998+A1:2001+A2:200 |
|
| EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 |
|
| FCC | |
| CE,ROHS | |
| Environmental Characteristics | Operating temperature: -30 C to + 65 C |
| Storage temperature: - 40 C to + 80 C | |
| Operating Relative Humidity: 30% - 95% | |
| Atmospheric pressure: 60-106Kpa. | |
| Mechanical Data | Key travel: 2.0mm |
| Lifetime (cycles): Min 10, 000, 000 actuations | |
| Sealing protection: IP65 from the front | |
| Lifespan: more than 5 years | |
| Operation system | Interface: USB, PS/2 |
| OS:
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX |
|
| Color | Keycap:black, grey or silver |
| Backlight:blue, green, red, white | |
| Weight and Dimension | Dimension: Front panel:381x100x35mm(front panel) |
PRODUCT DETAILS -
PRODUCT TESTING -
