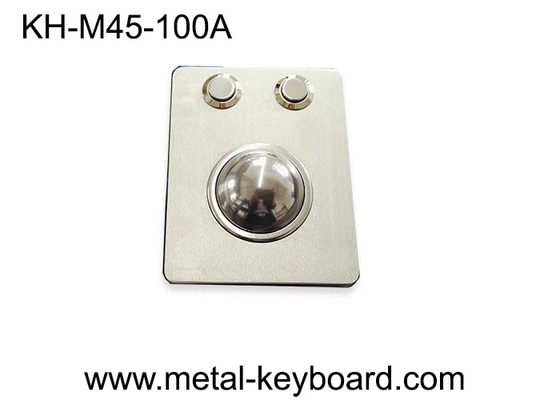

Waterproof Panel Mounted Industrial Trackball Mouse W/38mm Ball Stainless Steel

Waterproof Panel Mounted Industrial Trackball Mouse W/38mm Ball Stainless Steel

  • Waterproof Panel Mounted Industrial Trackball Mouse W/38mm Ball Stainless Steel
  • Waterproof Panel Mounted Industrial Trackball Mouse W/38mm Ball Stainless Steel
Waterproof Panel Mounted Industrial Trackball Mouse W/38mm Ball Stainless Steel
Product Details:
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-M45-100A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 2pcS/EPE/inner box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: T/T, Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Dimensions: 100 X 78 Mm (Front Panel)
Interface: PS/2 Or USB Metal Ball Dimension: Dia 38mm
Keys: 2
Highlight:

38mm Ball Industrial Trackball Mouse

,

Panel Mounted Industrial Trackball Mouse

,

Waterproof Stainless Steel Trackball Mouse



Waterproof Panel Mounted Industrial Trackball Mouse W/38mm Ball



Product Features:


• IP65 ruggedized Industrial metal trackball mouse

• 2 round metal buttons for design right and left

• High technology Optical Navigation Technology.

• Can be mounted horizontally, and vertically.

• USB, PS/2 interface are available



MAIN APPLICATION:


• This Waterproof Metal Panel Mount Trackball Mouse -

uses existing mouse driver and mouse software Interfaces for most workstations and computers. making them vandal proof, resistant to dust, dirt, water and corrosive liquids, used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.





Technical Specifications



ITEM           SPECIFICATION
Mechanical Key 2 Round Keys
Front Plate Quality brushed stainless steel
Ball diameter 38.1mm
Key switch lifespan more than 10 Mio actuations
Track ball lifespan > 10 Mio revolutions
Mounting Rack top stainless steel plate with mounting screw bolts
Trackball Mouse Size

Front plate (W x H): 100mm x 78mm

Interface PS/2 or USB interface, plug and play,no extra software is needed
Electrical Power supply 5V DC+ 10%, mouse interface
Protection level IP65 dynamic (front panel), NEMA3, IK10
EMC Standard EN55022(B)
Power consuming ≤1.00W(dynamic)
≤0.2W(static)
Contact Material sealed stainless steel buttons
Environmental Operating temperature -20ºC~+ 60º C
Storage temperature - 30ºC~+ 70ºC
Operating RH 30~90%
Atmospheric pressure 60~106Kpa.
Reliable Certificates RoHS compliant, CE and FCC certified. ESD
MTBF >50000H
MTTR < 30min
OS OS is under All windows, Linux, Unix, Mac OS9 / OSX




Technical Drawing:
Waterproof Panel Mounted Industrial Trackball Mouse W/38mm Ball Stainless Steel 0

Waterproof Panel Mounted Industrial Trackball Mouse W/38mm Ball Stainless Steel 1
