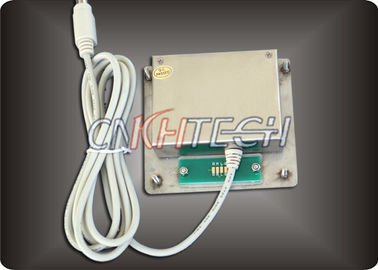

High Precision USB Interface Metal Industrial Touchpad With 2 Mouse Button

Product Details:

Place of Origin:	China
Brand Name:	CNKHTECH
Certification:	CE/ROHS/FCC
Model Number:	KH-MA96-TP(usb)

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	2pcs/EPE/inner box, 30boxes/ctn
Delivery Time:	1-2 weeks
Payment Terms:	T/T, Paypal
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Mounting Method:	Front Panel Mounting Solution
Dimensions:	96 X 80 Mm (Front Panel)	Interface:	USB
Operating Temperature:	-20º C To + 60º C	Product Name:	Industrial Touchpad
High Light:	rugged touchpad , numeric touchpad , Metal Industrial Touchpad

USB Interface Metal Industrial Pointing Touchpad with 2 Mouse Button

Product Description

• High precision pressure sensing technology of touchpad,

• USB Interface No driver needed, plug and play.

• Stainless steel housing protects the electronics module,

• 2 mouse buttons designed for right & left function keys,

• Stainless steel panel top mounted.

• Customized layout is available

TECHNICAL SPECIFICATION

Mechanical	Dimension:	(W x H): 96 x80 mm (Front panel)
	Key & Front panel	2 keys, Brushed stainless steel material
	Touchpad thickness	1.3 mm PCB thickness inclusive of mylar layer
	Validated Touchpad	(W x H):62 x 46 mm;
	Touchpad lifespan	> 10 Mio times
	Mounting Rack	Top Metal plate with mounting screw bolts
	Back Metal Cover	Rear side integrated electronics protected by a metal cover
Interface	PS2 or USB are available
Electrical	Power supply	5V DC+ 10%,
	Work current	4.0 mA (normal)
	X/Y position sensing resolution:	1000 points/inch (40 points/mm)
	X/Y position reporting:	Relative
	Tracking speed:	Maximum 1,016 m/sec
	Protection level:	IP65 (front panel)
	Static Release:	15 KV (front panel)
	EMC Standard:	EN55022(B)
Environmental	Operating temperature:	-10°C to +55°C
	Storage temperature:	- 20°C to + 65°C
	Operating RH:	10%-95%
	Atmospheric pressure:	60-106Kpa
Reliability	MTBF	>50000H
	MTTR	< 30min
	Touchpad Lifespan	>10 million actuations
OS	OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Win7,Unix, Mac OS9 / OSX

High Precision USB Interface Metal Industrial Touchpad With 2 Mouse Button 0

KEHANG Product Features

1. Material: Stainless steel material design, IP65 Water-proof,dust-proof,Vandal-proof performance,and long lifespan.

2. Keys: Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers. Long life to prevent lettering rub-off. and firm tactile key feel and unique double over-travel protection.

3. Key-tops : Internet friendly key layout, Etched graphics with permanent ink, durable and long lasting. Sunk laser-etched in legends and characters via using high quality ink for easy readability,

4. Layout: Friendly layout and any language is available and without any additional charge.

5. Interface: PS/2, USB connection plug-and-play. No driver needed, plug and play.

6. Easily mounting into enclosure or panel.
