USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device

USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device

  • USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device
  • USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device
USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device
Product Details:
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-M25-80A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pc/EPE/white box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: 304 Stainless Steel Protection Level:: IP65; NEMA4x
Key Number: 3 Interface: USB, PS/2
Highlight:

panel mount trackball

,

kiosk trackball

,

Dust Proof Industrial Trackball Mouse



USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device

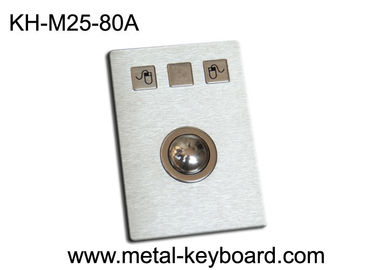

Model NO:KH-M25-80A

Dimension: 80 x110 mm (Front panel)





Product Description:



IP65 Rated vandal proof stainless steel laser trackball, 3 mouse buttons designed for right, left scrolling keys, with front panel mounting solution.





Product Features:



• All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.

• Laser Encoders provide high resolution more than 1200DPI, fast and reliable positioning data.

• 25mm diameter Stainless steel ball for smooth, quick and durable operation and precise cursor positioning.

• Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.

• no metal bearings inside, operation is very smooth, and easy without any noise.

• can be mounted horizontally, and vertically.

• PS/2 or USB connector is available.

• Customized layout is available.







MAIN APPLICATION:



• Using the existing mouse driver and mouse software Interfaces for most workstations and computers. It’s meet NEMA 4, 4X and IP 65 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.





Technical Specifications
Material Electrical Data Environmental Characteristics

• Front panel & Keys: SUS304 Stainless steel

• Back panel: Aluminum alloy

• Trackball: Stainless steel(Dia: 25mm)

• Voltage: 5.0VDC ±5%

• Electric current: 10mA

• EMC compliant

• Laser trackball resolution: 1200dpi

• Operating temperature: -20°C to + 60°C

• Storage temperature: - 40°C to + 80°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

Interface Reliability Mechanical Data

• PS/2, USB available,No driver needed, plug and play.



• MTBF >5,0000H

• MTTR <30min



• Key switch lifespan:more than 10 Mio actuations

• Trackball lifespan:> 10 Mio revolutions

Dimension Packing Operation system
• (W x H): 80mm x 110mm(Front panel) • 1pc/EPE/white box, 30boxes/ctn • It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX





USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device 0USB Port Sealed Dust Proof Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device 1
