Place of Origin: | China |
Brand Name: | CNKHTECH |
Certification: | CE/ROHS/FCC |
Model Number: | KH-M50ball |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | 4pcs/EPE/inner box, 30boxes/ctn |
Delivery Time: | 1-2 weeks |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000pcs/month |
Material: | Resin | Protection Level:: | IP54(front Panel) |
---|---|---|---|
Mouse: | Trackball | G.W.:: | 0.3 KG |
Highlight: | industrial trackballs,panel mount trackball |

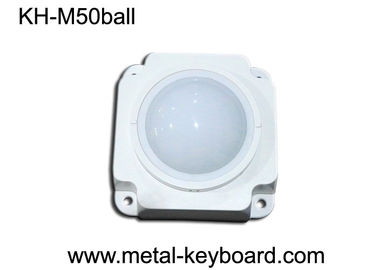

Dust proof Mechanical Industrial Trackball Mouse , Trackball Pointing Device
Product Features
> Mechanical Trackball Module with backlit
> Built in 50mm resin ball Module
> PS/2 or USB connector is available.
> Customized layout is available
Application
Industrial 50MM Mechanical Trackball Mouse Module for Medical
Technical Data
> Electrical Data
Supply Voltage | 5.0V DC±5% |
Current Rating | Appr. 30mA |
EMC Standard | Council EMC directive 2004/108/EC |
EN55022 | 2006+A2:2010 |
EN55024 | 1998+A1:2001+A2:2003 |
Lifespan | > 3 years |
> Environmental Adaptability
Operating temperature | -20°C to +60°C |
Storage temperature | -30°C to +70°C |
Operating RH | 20-95% |
Atmospheric pressure | 60-106Kpa. |
> Reliability
CompliantStandard | RoHS , CE and FCC |
Protection Level | IP54(front panel) |
Key Lifespan | >1 million actuation |
MTBF | >50000H |
MTTR | <30min |
Operation system | It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX |
