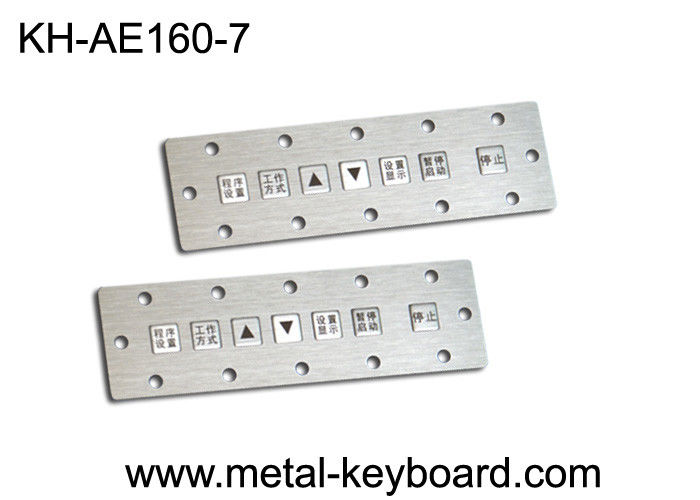

Customizable Metal Kiosk Keyboard , 7 Keys rugged keypad Industrial Function

Product Details:

Place of Origin:	China
Brand Name:	CNKHTECH
Certification:	CE/ROHS/FCC
Model Number:	KH-AE160-7

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	2pcs/EPE/inner box, 30boxes/ctn
Delivery Time:	1-2 weeks
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Material:

Stainless Steel

Interface:

USB, PS/2 Or Matrix Output

Layout:

Customization Available

Certificates:

CE,ROHS,FCC

High Light:

industrial mini keyboard

full metal keyboard

Customizable Metal Kiosk Keyboard

Customizable Metal Kiosk Keyboard , 7 Keys rugged keypad Industrial Function

Product Description:

7 Keys Industrial Function Keypad, metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm, with rear mounting solution

Product Features

16keys design stainless steel kiosk keypad, by 4 x 4 Layout.
Waterproof ,dust proof, vandal proof.shake-proof
Laser engraved characters for excellent durable.
Customized layout is available
Rear panel mounting solution .
PS/2 or USB connector is available.

Application

Ideal for applications in the public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc..

Technical Data

> Mechnical Data

Key Travel	0.45mm
Switch Life	More than 1 million of per key
Operation System	WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,MacOSX, iOS, Android

> Electrical Data

Supply Voltage	5.0V DC±5%
Current Rating	Appr. 30mA
EMC Standard	Council EMC directive 2004/108/EC
EN55022	2006+A2:2010
EN55024	1998+A1:2001+A2:2003
Lifespan	> 5 years

> Environmental Adaptability

Operating temperature	-20°C to +60°C
Storage temperature	-30°C to +70°C
Operating RH	20-95%
Atmospheric pressure	60-106Kpa.

> Reliability

CompliantStandard	RoHS , CE and FCC
Protection Level	IP65(front panel)
Vandal resistant	IK10
Key Lifespan	>1 million actuation
MTBF	>50000H
MTTR	<30min
