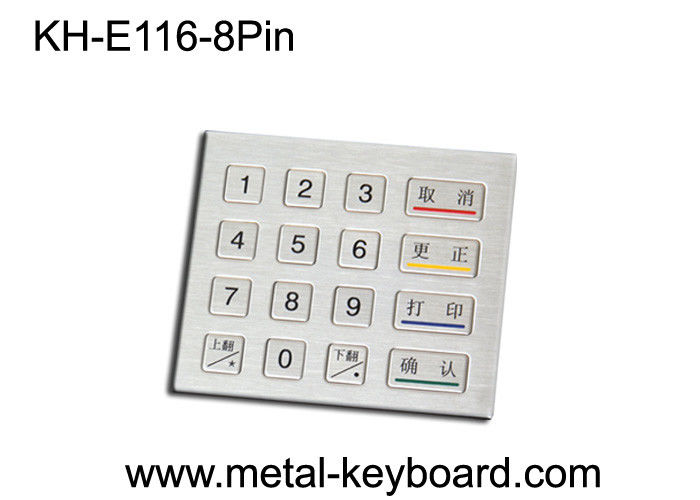

Rugged Metal Keypad with 16 Keys / custom Kiosk Keypad PS / 2 or USB connector

Rugged Metal Keypad with 16 Keys / custom Kiosk Keypad PS / 2 or USB connector

  • Rugged Metal Keypad with 16 Keys / custom Kiosk Keypad PS / 2 or USB connector
Rugged Metal Keypad with 16 Keys / custom Kiosk Keypad PS / 2 or USB connector
Product Details:
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-E116
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 2pcs/EPE/inner box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Interface: USB, PS/2 Or Matrix Output
Layout: Customization Available Certificates: CE,ROHS,FCC
Keys: 16 Dimension: 116 X 97.5mm(Front Panel)
High Light:

stainless steel keypad

,

industrial keypad


Rugged Metal Keypad with 16 Keys / custom Kiosk Keypad PS / 2 or USB connector


Product  Description:

  • 16 Keys Rugged Stainless Steel Entry Keypad with electronics controller protected by stainless steel housing, metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm, with rear mounting solution



Product Features


  • The Metal Kiosk Keypad is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.
  • deal for applications in the harshest conditions,it meets NEMA 4, 4X and IP 65 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.
  • PS/2 or USB connector is available.
  • All international language lay-out are optional.
  • It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX



Application


  • Ideal for applications in the public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc..


Technical Data

>  Mechnical Data


Key Travel

 0.45mm

Switch Life

 More than 1 million of per key

Operation System

 WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,MacOSX,

 iOS, Android


>   Electrical Data


Supply Voltage5.0V DC±5%
Current RatingAppr. 30mA
EMC StandardCouncil EMC directive 2004/108/EC
EN550222006+A2:2010
EN550241998+A1:2001+A2:2003
Lifespan> 5 years


>  Environmental Adaptability


Operating temperature-20°C to +60°C
Storage temperature-30°C to +70°C
Operating RH20-95%
Atmospheric pressure60-106Kpa.


>  Reliability


CompliantStandardRoHS , CE and FCC
Protection LevelIP65(front panel)
Vandal resistantIK10
Key Lifespan>1 million actuation
MTBF>50000H
MTTR<30min


Rugged Metal Keypad with 16 Keys / custom Kiosk Keypad PS / 2 or USB connector 0

------------------------------------------------------------------------------------------------------------------------------------
