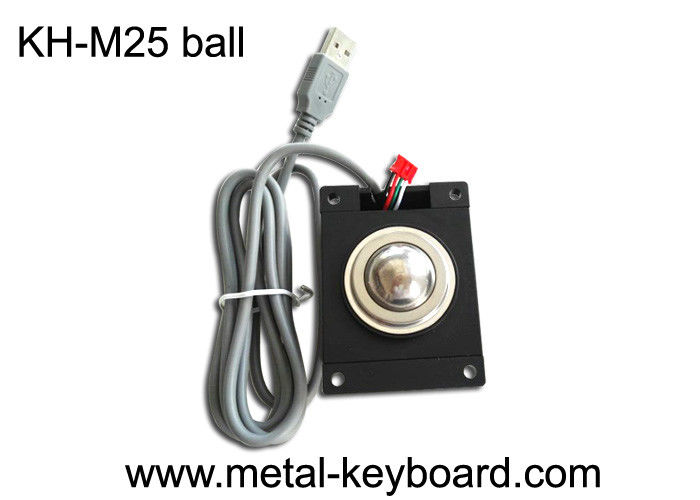

IP65 Rated Industrial Trackball Mouse , Stable 25MM Laser Trackball Module

IP65 Rated Industrial Trackball Mouse , Stable 25MM Laser Trackball Module

  • IP65 Rated Industrial Trackball Mouse , Stable 25MM Laser Trackball Module
IP65 Rated Industrial Trackball Mouse , Stable 25MM Laser Trackball Module
Product Details:
Place of Origin: China
Brand Name: CNKHTECH
Certification: CE/ROHS/FCC
Model Number: KH-M25 ball
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 4pcs/EPE/inner box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Trackball: Laser Trackball Resin Ball Size: Diameter 25mm
Trackball Measurment: 76 X 55 Mm(front Panel) Category: Industrial Mouse
High Light:

industrial trackballs


panel mount trackball

IP65 Rated Industrial Trackball, stable 25MM laser trackball module

KH-M25 ball
Dimension: 76 x 55 mm (Front panel)

Product Description

1. IP65 splashed water proof design!

2. Use high performance optical sensor

3. 25mm laser trackball , standard USB or PS2 output support

4. Integrated 2/3 click buttons/extended additional buttons are available

5. Use most stable and high-compatible MCU controller.

6. Stable performance and well compatible with windows, mac or linux, and industrial control OS.


Product Features:

Adopts laser inductive sensor and stable fully compatible Mcu, the resolution of device is adjustable from 800dpi to 1600 dpi. This allows it a more precise tracking of movements; unique design of waterproof and dust proof makes it easy to get IP65 protect level.Special structure design makes the ball moving free and quiet. Hi-quality circuits and software design makes the ball available applications in different industrial areas, the medical or marine, public areas and harshest conditions.




• This mouse is mainly used for applications in the medical or marine industrial areas, public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.


Technical Specifications


Stainless Steel

Net Weight  0.3KG


Interface: USB or PS2
Supply Voltage 5.0V DC±5%
Current Rating: appr. 310mA
EMC Standard: EMC compliant
Laser trackball resolution 1200DPI

Environmental Characteristics

Operating temperature: -20 C to + 60 C
Storage temperature: - 40 C to + 80 C
Operating RH: 20-95%
Atmospheric pressure: 60-106Kpa.
Mechanical Data Key switch lifespan more than 10 Mio actuations
Keypad Lifespan more than 5 years
keys Lifespan > 5 years
Reliability MTBF >50,000H
MTTR <30min
Operation system It is compatible to All windows, Linux, Unix, Mac OSX


1. We offer the high quality and reliable products.
2. We promise all our products are with 1 year warranty.
3. We provide the professional and fast reply and service within 12 hours.
4. We offer the moderate and reasonable price, and we also welcome the distributors and dealer/agency to share our products.
5. Our products are strictly according to IP65/FCC/CE/ROHS regulations and requirements.
6. There is only 1-2 weeks for the production lead time.

Delivery Methods -
IP65 Rated Industrial Trackball Mouse , Stable 25MM Laser Trackball Module 0
