Place of Origin: | China |
Brand Name: | CNKHTECH |
Certification: | CE/ROHS/FCC |
Model Number: | KH-K80-381 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | 1pc/EPE/white box, 10boxes/ctn |
Delivery Time: | 1-2 weeks |
Payment Terms: | T/T, Paypal, L/C |
Supply Ability: | 2000pcs/month |
Features: | Metal Keyboard | Overall Size: | 381x100x35mm(Front Panel) |
---|---|---|---|
Number Of Keys: | 80 KEYS + 3 BUTTONS | Trackball Information: | Diameter 25mm Metal Tracakball |
Highlight: | industrial pc keyboard,waterproof mechanical keyboard,Metal Computer Keyboard With Trackball |

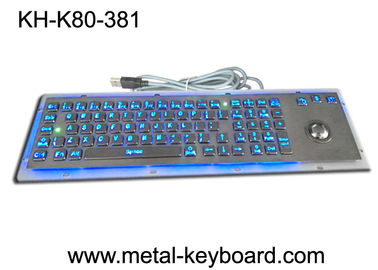

SS Industrial Metal Keyboard with Trackball, standard USB or PS2 output support
MAIN DESCRIPTION -
1) IP65 performance of water proof, dust proof and vandalism proof.
2) SS PC layout in 80 kyes with 3 designed buttons and 25mm optical trackball
3) Standard USB or PS2 output support, Panel mounted rear plate
4) it works well after properly mounted with integrated optical trackball,
“Fn + SPACE” is as backlight effect; 2 different light level(press 1 time is light, press again it would be lighter).
A light image laser on the SPACE key as the mark.
5) Be mounted in horizontal or vertical and operated smoothly without any noise
6) Different layout acceptable according to customer’s reques, also including the languages changes
7) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
8) Robust construction, high resistance against vandalism
9) Stable performance and well compatible with windows, mac or linux, and industrial control OS.
TECHNICAL DATA SHEET AND SPECIFICATIONS -
Base Data -
Product Dimension(Front Panel): 381x100x35mm
Product Dimension(Monting Panel):405x125x35mm
Electrical Data -
Power supply voltage: : 5.0V DC±5%
Current rating: appr. 30mA(Normal)
EMC compliant. compliance with the council EMC directive 2004/108/EC
EN55022: 2006+A2:2010
EN55024: 1998+A1:2001+A2:200
EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
Interface: USB or PS2
Operating temperature: -30 C to + 65 C
Storage temperature: - 40 C to + 80 C
Operating Relative Humidity: 30% - 95%
Atmospheric pressure: 60-106Kpa.
Applications:
This SS Industrial Metal Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.
FAQ
1.How could I buy the products I need as there is no price in the website?
You can send your inquiry to us about the products you need, our sales will reply you within 24 hours to help you make the order.
2.Can you make products according to our samples or drawings?
Yes, we offer OEM ,ODM and sourcing service for all customers.
3.Can you send sample for us?
Yes, you can place a sample order. However, our samples are not free for you, you need to pay for them.
4.Can you accept small order?
Sure, we can accept small orders or trial orders, it is the starting of business, you need samples for testing and adjusting. But according to different product, the price may be higher as normal quantity.
5.Do you inspect the product?
Yes, each step of production/materials and finished products will be carried out inspection by QC before shipping.
6.What is your payment term?
For large orders, 40% deposit + 60% balance before shipment.
For small orders, we suggest 100% prepaid.
We take T/T, L/C ,Paypal ,Western Union, etc.
