SZ Kehang Technology Development Co., Ltd.
China Professional Manufacturer and Solution Provider of Industrial Keyboard , Industrial Keypad, Industrial trackball and industrial touchpad
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | CNKHTECH |
| Certification: | CE/ROHS/FCC |
| Model Number: | KH-MB80-TP |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 6pcs/EPE/inner box, 30boxes/ctn |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 5000pcs/month |
| Material: | Black Stainless Steel | Dimensions: | 80 X 80mm (Front Panel) |
|---|---|---|---|
| Interface: | USB, PS/2, Others | Operating Temperature: | -20º C To + 60º C |
| Highlight: | USB Touchpad Industrial Pointing Device,Industrial Pointing Device SS,Panel Mount Industrial Trackball Mouse |
||

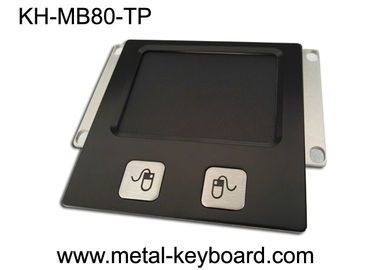

Industrial Stainless Steel Panel mount touch-mouse, USB interface touchpad
Product Description
TECHNICAL SPECIFICATION
|
|
| Dimension: | (W x H): 80 x80 mm (Front panel) |
| Key & Front panel | 2 keys, SUS304 stainless steel material |
| Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer |
| Validated Touchpad | (W x H):62 x 46 mm; |
| Touchpad lifespan | > 10 Mio times |
| Mounting Rack | Top panel w/bolt mounting solution |
| Back Metal Cover | Rear side integrated electronics protected by a metal cover |
| Operation System | WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,Mac OSX,iOS, Android |
|
|
| Supply Voltage | 5.0V DC ± 10% |
| Work Current | 4.0mA(Normal) |
| X/Y Position Sensing Resolution | 1000points/inch(40points/mm) |
| X/Y Position Reporting | Relative |
| Tracking Speed | Max. 1016m/second |
| Static Release | 1.5 KV(Front panel) |
| EMC Standard | EN55022(B) |
|
|
| Operating temperature | -10°C to +55°C |
| Storage temperature | -20°C to +65°C |
| Operating RH | 10-95% |
| Atmospheric pressure | 60-106Kpa. |
|
|
| Compliant Standard | RoHS , CE and FCC |
| Protection Level | IP65(front panel) |
| Touchpad Lifespan | >10 million actuation |
| MTBF | >50000H |
| MTTR | <30min |
