SZ Kehang Technology Development Co., Ltd.
Professional Manufacturer and Solution Provider of Industrial Keyboard , Industrial Keypad and Industrial trackball/touchpad
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | CNKHTECH |
| Certification: | CE/ROHS/FCC |
| Model Number: | KH-MF-80TP |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 2pcs/EPE/inner box, 30boxes/ctn |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 5000pcs/month |
| Material Of The Frame: | Stainless Steel | Size Of The Touchpad: | 80 X110mm(Front Panel) |
|---|---|---|---|
| Touchpad Validated: | 62 X 46mm(W X H) | Output/connector: | USB, PS/2, Others |
| Highlight: | trackball pointing device,industrial trackball mouse,Dustproof Panel Mount Trackball |
||

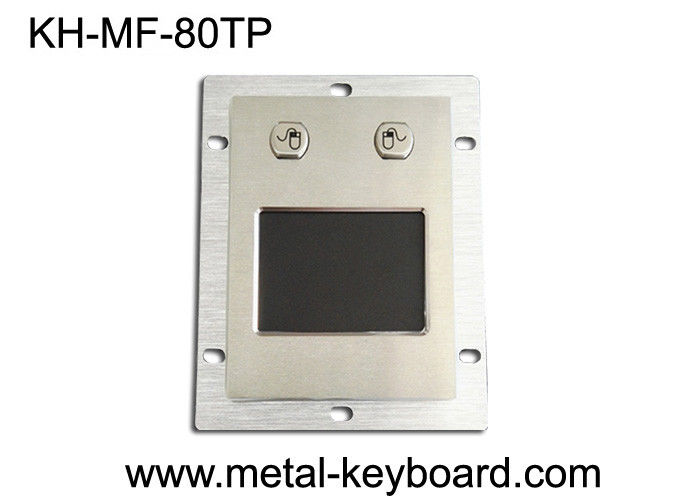

Dustproof Stainless Steel Industrial Touchpad Mouse for Accurate Pointing Device
KH-MF-80TP
PRODUCT DESCRIPTIONS -
Ruggedized Touchpad for fast and accurate cursor position, with 2 buttons, the electronics controller module shielded and protected with stainless steel housing,Rear aluminum panel w/hole mounting solution.
FEATURES-
1. High precision pressure sensing technology of touchpad
2. 2 mouse buttons designed for right & left function keys
3. PS2 or USB connectors are optional, No driver needed, plug and play.
4. IP65 Water-proof, dust-proof, vandal-resistant proformance
5. Rear aluminum panel w/hole mounting solution.
6. Lower power consumption
7. Customized design, including the dimensions and buttons could be acceptable.
APPLICATION -
Dustproof Inustrial Stainless Steel Touchpad Mouse is Mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.
TECHNICAL DATA -
| Mechnical Data | Electrical Data | ||
| Dimension | 80 x110mm(Front Panel) | Supply Voltage | 5.0V DC±10% |
| Validated Touchpad | 62 x 46 mm(W x H) | Work Current | 4.0mA(Normal) |
| Touchpad lifespan | More than 10 million times | X/Y position sensing resolution | 1000 points/inch (40 points/mm) |
| OS |
WINDOWS98/ME/2000/2003/XP/ Vista/Linux,Unix,MacOSX,iOS, Android |
X/Y position reporting | Relative |
| Tracking speed | Maximum 1,016 m/sec | EMC Standard | EN55022(B) |
| Environmental Adaptability | Reliability | ||
| Operating temperature | -10°C to +55°C | CompliantStandard | RoHS , CE and FCC |
| Storage temperature | -20°C to +65°C | Protection Level | IP65(front panel) |
| Operating RH | 10-95% | Static Release | 15 KV (front panel) |
| Atmospheric pressure | 60-106Kpa. | Key Lifespan | More than 10 million actuations |
| MTBF | >50000H | MTTR | <30min |
