SZ Kehang Technology Development Co., Ltd.
Professional Manufacturer and Solution Provider of Industrial Keyboard , Industrial Keypad and Industrial trackball/touchpad
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | CNKHTECH |
| Certification: | CE/ROHS/FCC |
| Model Number: | KH-K80-381 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pc/EPE/white box, 10boxes/ctn |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | T/T, Paypal, L/C |
| Supply Ability: | 2000pcs/month |
| Keyboard Catagory: | Backlit Industrial Keyboad | Product Measurement: | 381x100x35mm(Front Panel) |
|---|---|---|---|
| Keyboard Material: | Stainless Steel | Color(Light): | Blue, Red, Green, White |
| Keys/Buttons: | 80 KEYS + 3 BUTTONS | Interface: | USB Or PS/2 |
| High Light: | Trackball Mouse Dust Proof Keyboard,80 Keys Dust Proof Keyboard,Dark Conditions Metal Keyboard |
||

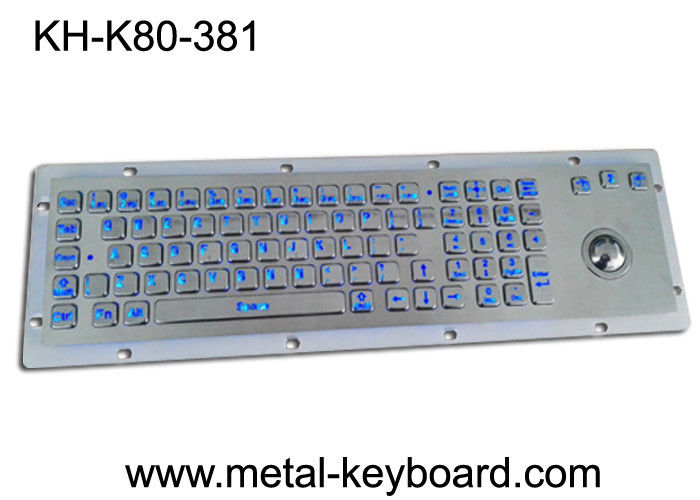

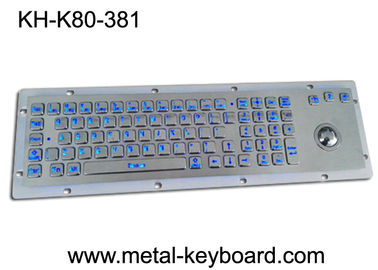

LED 80 keys Backlit dust proof keyboard with Trackball mouse , metal keyboard for dark conditions
ITEM No.: KH-K80-381
Dimension(Front Panel): 381x100x35mm
Dimension(Monting Panel):405x125x35mm
APPLICATIONS -
Using in Marine industry(such as access control system), industrial automation device, military devices, coal mine area, metallurgy, electricity,transportaion and other special industries.
MAIN DESCRIPTION -
|
1 |
LED 80 keys backlight industrial keyboard in PC layout with 3 designed buttons and 25mm laser trackball |
|
2 |
Better use and control when in dark conditions compared with non-backlight items. “Fn + SPACE” is as backlight effect; 2 different light level(press 1 time is light, press again it would be lighter). A light image laser on the SPACE key as the mark.
|
|
3 |
Liquird proof, dustproof , vanal proof keyboard and it can be used in harsh environment |
|
4 |
OEM/OEM order is acceptable with less MOQ |
|
5 |
The color of the light can be adjust/ changed per customers requests. |
|
6 |
The interfaces are : USB, PS/2 or matrix(pins) for your consideration. |
TECHNICAL DATA SHEET AND SPECIFICATIONS -
| Material | Front panel & Keys: Brushed stainless steel |
| Back panel: Aluminum alloy | |
| Electrical Data | Power supply voltage: :5.0V DC±5% |
| Current rating: appr. 30mA | |
| Interface: USB or PS2 | |
| EMC compliant. compliance with the council EMC directive 2004/108/EC EN55022: 2006+A2:2010 EN55024: 1998+A1:2001+A2:200 |
|
| EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 |
|
| FCC | |
| CE,ROHS | |
| Environmental Characteristics | Operating temperature: -30 C to + 65 C |
| Storage temperature: - 40 C to + 80 C | |
| Operating Relative Humidity: 30% - 95% | |
| Atmospheric pressure: 60-106Kpa. | |
| Mechanical Data | Key travel: 2.0mm |
| Lifetime (cycles): Min 10, 000, 000 actuations | |
| Sealing protection: IP65 from the front | |
| Lifespan: more than 5 years | |
| Operation system | Interface: USB, PS/2 |
| OS:
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX |
|
| Color | Keycap:black, grey or silver |
| Backlight:blue, green, red, white |
TECHNICAL DRAWING-
