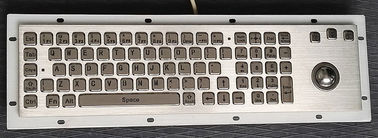

Illuminant Waterproof SS Industrial Metal Keyboard With Trackball Pointing Device

Illuminant waterproof SS Industrial Metal Keyboard with Trackball pointing device

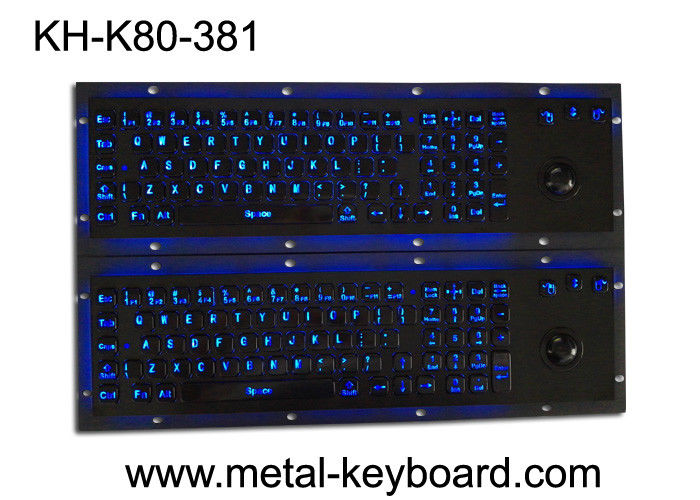

ITEM No.: KH-K80-381

APPLICATIONS -

Using in Marine industry,like access control system, industrial automation device, military devices, coal mine area, metallurgy, electricity,transportaion and other special industries.

MAIN DESCRIPTION -

1) Optional connections: PS/2 or USB

2) LED individually-lit /illuminant waterproof SS PC layout in 80 kyes with 3 designed buttons and 25mm stainless steel trackball mouse

3) Panel mounted rear plate

4)  Meet IP65 requirements for dust-proof and liquid-proof, and it works well after properly mounted with integrated optical trackball,

5) Be mounted in horizontal or vertical and operated smoothly without any noise

6) Different layout acceptable according to customer’s reques, also including the languages changes

7) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback

8) Robust construction, high resistance against vandalism

9) The backlight color can be changed according to customer's needs: red, blue, green, white.

     “Fn + SPACE” is as backlight effect: 2 different light level(press 1 time is light, press again it would be lighter).

      A light image laser on the SPACE key as the mark.

TECHNICAL DATA SHEET AND SPECIFICATIONS -

Base Data -

Product Dimension(Front Panel): 381x100x35mm

Product Dimension(Monting Panel):405x125x35mm

Electrical Data -

Power supply voltage: :  5.0V DC±5%

Current rating: appr. 30mA(Normal)

EMC compliant. compliance with the council EMC directive 2004/108/EC
EN55022: 2006+A2:2010
EN55024: 1998+A1:2001+A2:200

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

Interface: USB or PS2

Operating temperature: -30 C to + 65 C

Storage temperature: - 40 C to + 80 C

Operating Relative Humidity: 30% - 95%

Atmospheric pressure: 60-106Kpa.

Machanical Data -

Key travel: 2.0mm

Environmental Characteristics -

Sealing protection: Be strictly according to IP65 from the front

OS:   DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX

Backlight Color: blue, green, red, white
