Place of Origin: | China |
Brand Name: | CNKHTECH |
Certification: | CE/ROHS/FCC |
Model Number: | KH-M50-100 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | 1pcs/EPE/inner box, 30boxes/ctn |
Delivery Time: | 1-2 weeks |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000pcs/month |
Trackball Material: | Resin | Resin Ball Size: | Diameter 50mm |
---|---|---|---|
Trackball Measurment: | 100x140mm(front Panel) | Category: | Industrial Mouse |
Buttons: | 2 Buttons | Applications: | Medical / Marine, Other Industrial Areas |
Highlight: | trackball pointing device,panel mount trackball mouse,Resin Trackball For Medical |

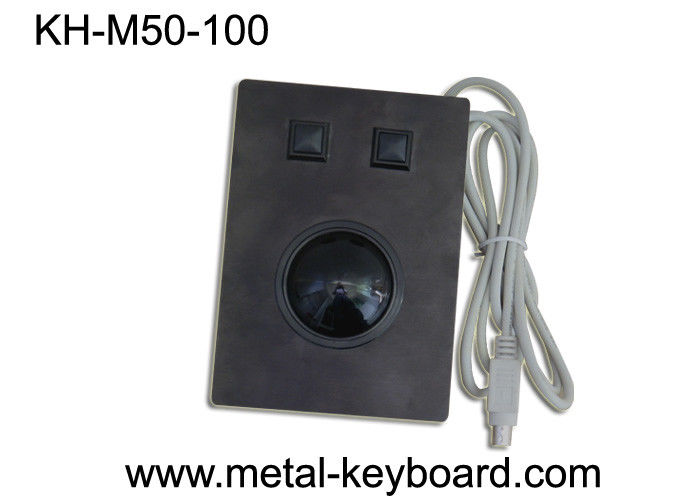

Waterproof 50MM Resin Trackball with stainles steel mounted panel, for medical / Marine areas
KH-M50-100
Dimension: 100x140mm (Front panel)
Product Description
• Black stainless steel panel with 50mm mechanical resin trackball, 2 mouse buttons designed for right, left keys, top panel w/bolt mounting solution.
• Resin ball size and button shape can be changed per customer's requests. You can add characters or marks on the buttons if you need.
Product Features:
• Rugged stainless steel panel mounted mouse
• Built-in 50mm resin trackball module
• With 2 pieces waterproof metal buttons switch for right and left functions, other desings are optional
• High-precise sensor and sturdy construction deliver reliable performance
• Low-friction base smoothly glides over work surfaces
• PS/2, USB connector are available,No driver needed, plug and play.
• Customized layout is available.
Applications:
• This mouse is used for existing mouse driver and mouse software Interfaces for most workstations and computers.
• This mouse is mainly used for applications in the medical or marine industrial areas, public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.
Technical Specifications | ||
Material |
Stainless Steel |
|
Net Weight | 0.6KG | |
ELECTRICAL DATA |
Interface: | USB or PS2 |
Supply Voltage | 5.0V DC±5% | |
Current Rating: | appr. 310mA | |
EMC Standard: | EMC compliant | |
Laser trackball resolution | 1200DPI | |
Environmental Characteristics |
Operating temperature: | -20 C to + 60 C |
Storage temperature: | - 40 C to + 80 C | |
Operating RH: | 20-95% | |
Atmospheric pressure: | 60-106Kpa. | |
Mechanical Data | Key switch lifespan | more than 10 Mio actuations |
Keypad Lifespan | more than 5 years | |
keys Lifespan | > 5 years | |
Reliability | MTBF | >50,000H |
MTTR | <30min | |
Operation system | It is compatible to All windows, Linux, Unix, Mac OSX |
Remark:
1. We offer the high quality and reliable products.
2. We promise all our products are with 1 year warranty.
3. We provide the professional and fast reply and service within 12 hours.
4. We offer the moderate and reasonable price, and we also welcome the distributors and dealer/agency to share our products.
5. Our products are strictly according to IP65/FCC/CE/ROHS regulations and requirements.
6. There is only 1-2 weeks for the production lead time.
